Thinking about Web Accessibility and Inclusive Design


“The power of the Web is in its universality. Access by everyone regardless of disability is an essential aspect”
Tim Berners-Lee, W3C Director and inventor of the World Wide Web

As Web Developers what can we do to contribute to this vision?

Define Web Accessibility

“Web accessibility means that people with disabilities can perceive, understand, navigate and interact with the Web, and that they can contribute to the Web.”
Introduction to Web Accessibility
From the W3C's Web Accessibility Initiative

Understand more
about this group of users and
the Diversity of User Abilities

Four Major
Categories of Accessibility

The following categories are illustrative are not intended to be an exhaustive listing of all disabilities and barriers.

Visual

This can be non-sighted users, users with low-vision, users with obstructed vision, or older users.

Screen readers, brail output, text zooming, high color contrast controls and keyboard navigation can be useful.

Auditory

Users with hearing disabilities.

Captions and alternatives for sound-neccessary media can be useful.

Motor

A limitation in the independent or purposeful physical movement of the body or of one or more extremities.

Because not everyone can use a mouse or click on small links people with motor disabilities typically use the keyboard, eye trackers, or single buttons to navigate their computer.

Cognitive

Involve disorders of any part of the nervous system, including the brain and the peripheral nervous system. This can impact how well people hear, move, see, speak, and understand information.

Users may user a variety of assistive technologies including spelling and grammer tools, bookmarks and history, text-to-speach and voice browser. Users may benefit from document outlines, descriptive titles and easy to read text.

More on The Diversity of Web Users

How People with Disabilities Use the Web - Diversity of Web Users
From the W3C's Web Accessibility Initiative

Challange Assuptions About Who is Using Our Digital Products



You can automatically enable closed captioning by adding ?cc_load_policy=1 to the url of an embedded YouTube video

What is
Assistive Technology?

Provides services beyond those offered
by the browser to facilitate user interaction
with web content by people with disabilities

From the W3C's
Accessible Rich Internet Applications (WAI-ARIA) 1.0
Important Terms

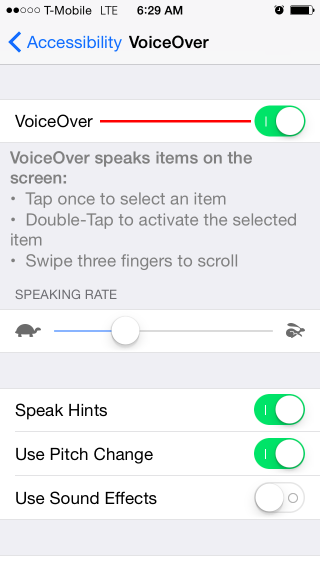

Activate VoiceOver
Screen Reader - iPhone

Instructions for activating and using VoiceOver on an iOS device.

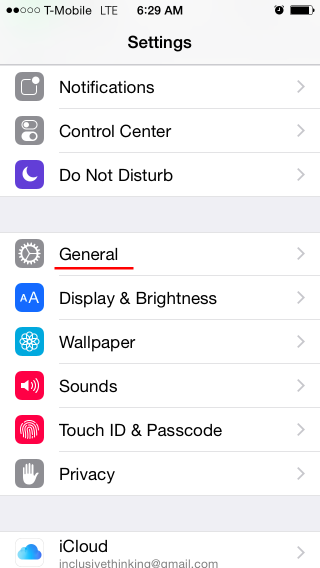

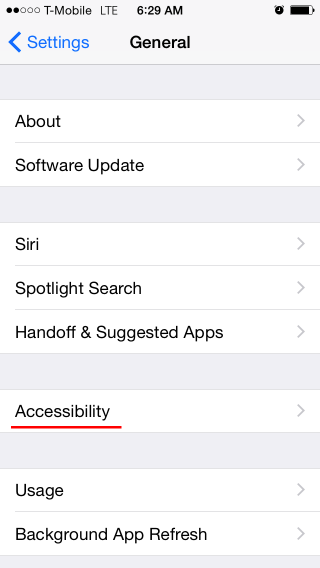

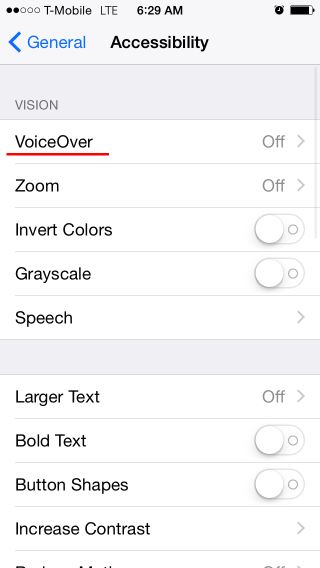

Activate VoiceOver from Settings > General > Accessibility





Using VoiceOver
Screen Reader on iPhone

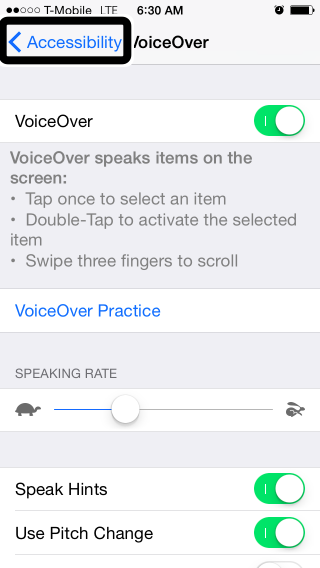

Once VoiceOver is Activated

Activate an Item on the Screen: Double Tap

Next Item: Flick Right

Previous Item: Flick Left

Scroll Down/Up: Three Finger Up/Down

Activate Rotor: Turn Clock-wise

Next/Previous Rotor Item: Flick Down/Flick Up

Activate VoiceOver
Screen Reader - OSX

Instructions for activating VoiceOver for OSX.

Activate VoiceOver from System Preferences > Accessibility > Enable VoiceOver checkbox

Using VoiceOver
Screen Reader for OSX

Once VoiceOver is Activated

Turn on VoiceOver: command + F5

Use the VO Keys for many tasks: control + option

From the address bar enter the Web area: VO + shift + down arrow

Next item: VO + right arrow

Previous item: VO + left arrow

Open Web Roter: VO + U

The Web Roter is used to navigate a page by various elements such as headings, landmarks or links

Screen Readers for Windows

Importance of
Semantic HTML Elements

The accessibility API is part of a device's operating system and represents objects in a user interface, exposing information about each object within the application or Web page.

Semantic HTML elements are immediately identified by the accessibility API and interpreted by screen readers. Non-semantic elements convey no information to the accessibility API.

Semantic Elements




 Go to some Web page

Go to some Web page

Non-Semantic Elements

Divs styled with CSS to look semantic







Click Me

The example above is often seen when developers implement a div with a CSS background as a link. A common example would be the implemenation of a social sharing icon on a site.

Non-Semantic Button Example

The following exercises illustrate how semantic HTML elements and non-semantic elements can look the same but are interpreted differently by screen readers

Exercise One

Use VoiceOver to read content that uses
Non-Semantic HTML elements

Open Exercise

Exercise 2

Modify the HTML using Semantic HTML elements
and read the page again

Modify HTML from Exercise One

Using Browser Plugins for Accessibility Testing

The WAVE browser extension from WebAIM allows you to evaluate web content for accessibility issues directly within the browser. It is available for Chrome and FireFox.

WAVE Web Accessibilty Evaluation Tool
(The way the text above is linked is intentional and is an example of link context from the WCAG which we will discuss later)

Once installed a "W" icon will appear in the browser toolbar. Press the icon to run an audit of the page. Errors and warnings will appear within the page. Click the error or warning to see more information in the left of the browser.

Using Browser Plugins for Accessibility Testing

tota11y is an accessibility visualization toolkit from Khan Academy. It can be added to Chrome from the Chrome Web Store

tota11y Accessibility Visualization Toolkit

Exercise 3

Use an accessibility testing plugin to run an automated test of our corrected page

Semantic Corrections

We used Sematic HTML elements!
What's with the all the errors?

Web Content Accessibility Guidelines - WCAG 2.0

A technical standard made of Four Principles with Twelve Guidelines containing testable Success Criteria

  1. Perceivable
  2. Operable
  3. Understandable
  4. Robust


We will refer to the Web Content Accessibility Guideliness and Success Crtieria in the upcoming excercises

Using Web Content Accessibility Guidelines
WCAG 2.0

At first glance the WCAG may look hard to understand. It contains a lot of information.

Web Content Accessibility Guidelines 2.0

Together, let's take a look at some easier ways to use these guidelines

WCAG 2 at a Glance
Understanding Web Content Accessibility Guidelines 2.0

Exercise 4

Correct errors produced by automated test results

Modify HTML from Exercise Two

WCAG Success Criteria Examples and Solutions




 DOCTYPE html lang="en"




Page Heading

Join our mailing list

Accessible Rich
Internet Applications (ARIA 2.0)

A set of accessibility attributes especially suited to HTML

ARIA Roles

Roles define the type of element or widget presented to the accessibility API

Categories of ARIA Roles

Landmark Roles - Identify content areas of a page. Help assistive devices navigate pages.

Widget Roles - Act as standalone user interface widgets or as part of larger, composite widgets.

Document Structure Roles - Describe structures that organize content in a page. Document structures are not usually interactive.

Abstract Roles - Abstract roles are used for the ontology. Not used in code.

This workshop focuses on Landmark and Widget roles

Common Landmark Roles

role = main
The main content of a page. Should only be used once on a page.

role = banner
Typically the “header” of a page that includes the site logo.

role = contentinfo
Typically the “footer” of a page which includes information such as copyright.

role = navigation
A collection of links to navigate the site.

Landmark roles will be used in the final project

Landmark Role Usage

Widget Roles

role = button

role = checkbox

role = radio

The folowing roles typically act as containers that manage othe widgets:

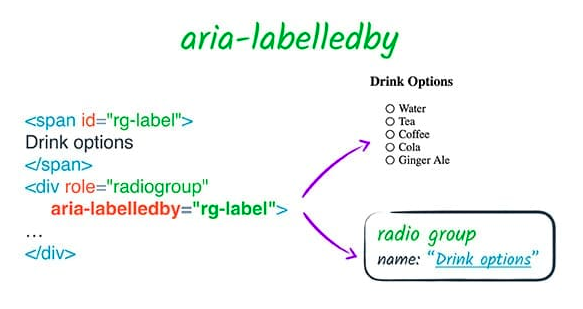

role = radiogroup

role = tablist

Exercise 5

1. Assign a varity of widget roles to a div

2. Listen to changes in the screen reader

Try It

More Information on ARIA Roles

The Roles Model

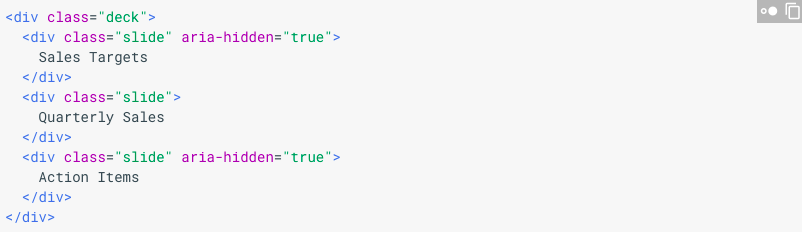

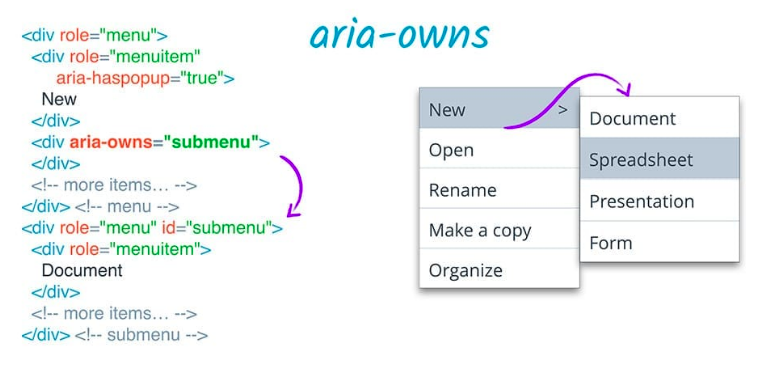

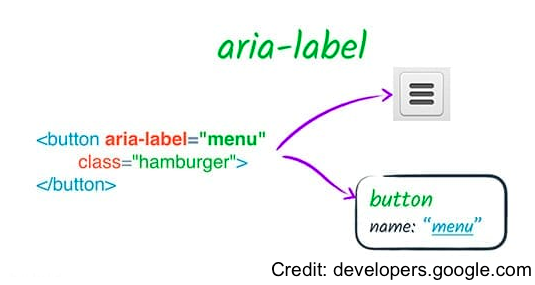

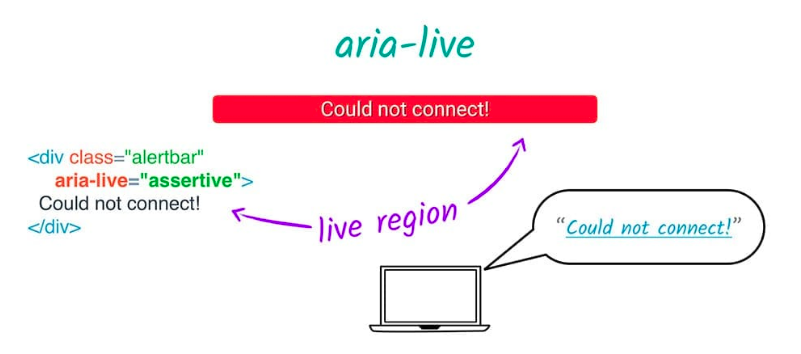

ARIA States and Properities

States and Properities announce the state of an element to the accessibility API. Often times, but not always, states are activated by user interaction

For example you can let a user know that a form input field is required by using aria-required="true"

Indicating State

role = checkbox | aria-selected = true

input type = text | aria-required = true

role = button | aria-pressed = true or false (creates a toggle button)

Mozilla Developer Network (MDN)

Exercise 6

1. Assign selected ARIA States and Properties to Semantic HTML

2. Listen to changes in the screen reader

Try It

More Information on ARIA States

ARIA States and Properties

Common Accessibility Barriers

    Missing alt attribute on images (Also impacts SEO)
    Missing heading elements (Also impacts SEO)
    Missing landmarks and regions
    Missing labels for form inputs

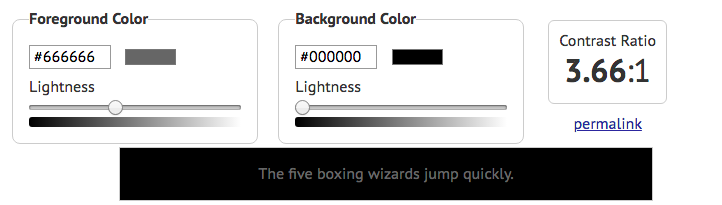

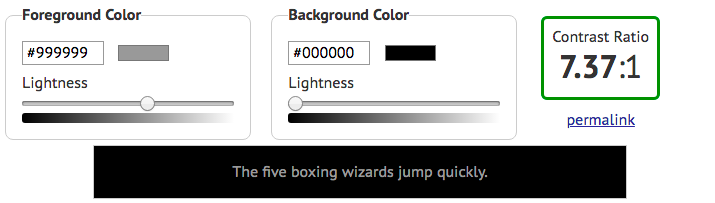

    Poor contrast ratio
    Lack of Keyboard Navigation

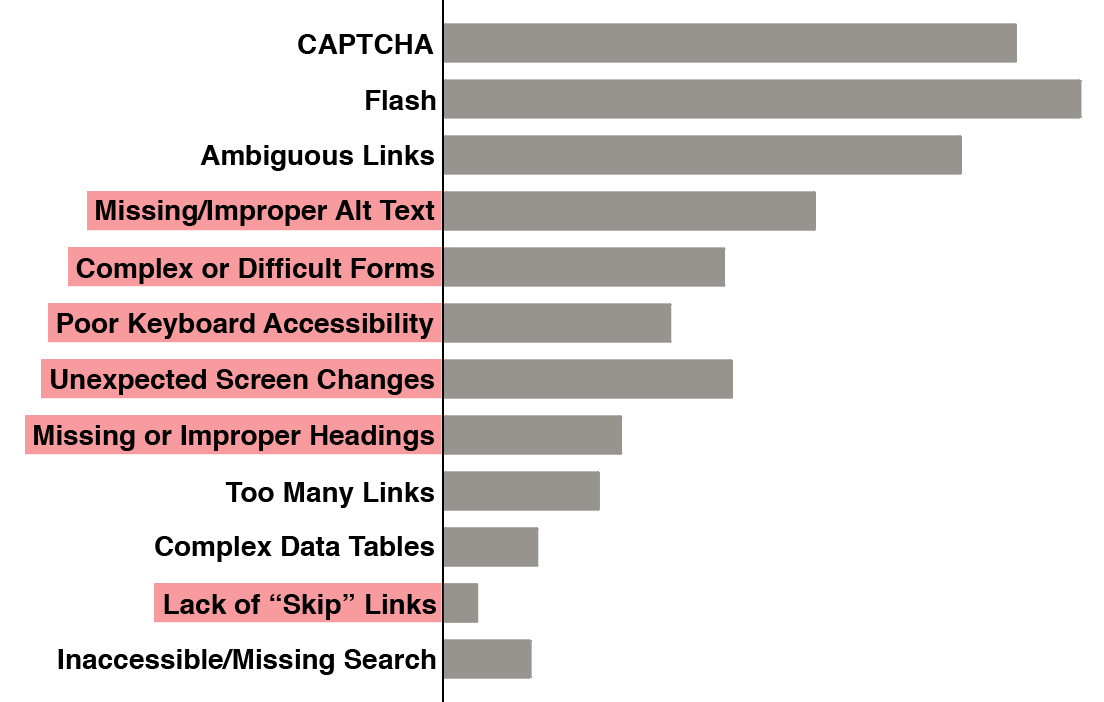

WebAIM Screen Reader User Survey

Final Project

Project Sitelet

Get Involved !!

WebAIM Discussion List

Bay Area Accessibility and Inclusive Design Meetup

W3C Working and Interest Groups - Web Accessibility Initiative (WAI)

A11Y Project

NVDA Screen Reader Community
