Asynchronous Technologies: AJAX/JSON


Review: HTML + JS, together!

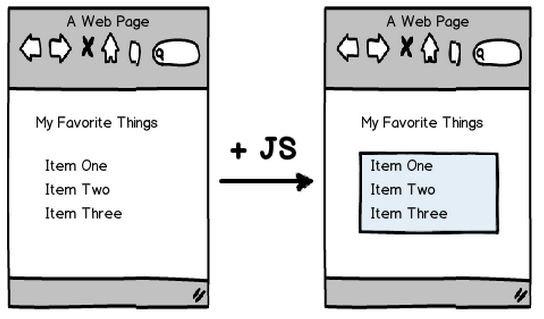

Static Content + Progressive Enhancement

progressive enhancement

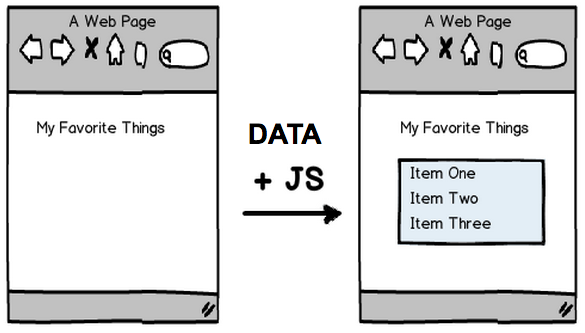

Dynamic Content

dynamic content

Storing data in JSON

  • Key/value pairs
  • Key must be stored with quotes (unlike JS Objects)
  • Value can be the following data types: Number, String, Boolean, Array, Object, null
  • Resembles objects/hash tables/structs of programming languages
  • Validate @
 "firstName": "Jane",
 "lastName": "Smith",
 "address": {
   "streetAddress": "425 2nd Street",
   "city": "San Francisco",
   "state": "CA",
   "postalCode": 94107
 "phoneNumbers": [
   "212 732-1234",
   "646 123-4567" ]

Using JS to turn JSON into DOM

            var myProfile = {
  "firstName": "Liz",
  "lastName": "Howard",
  "cats": ["Tribbles", "Jean Claws"]

var p = document.createElement('p');
p.innerHTML = 'My name is ' + myProfile.firstName + ' ' + myProfile.lastName + '. ';
p.innerHTML += 'My cats are ' + myProfile.cats.join(', ') + '.';

var p = $('<p>');
p.html('My name is ' + myProfile.firstName + ' ' + myProfile.lastName + '. ');
p.append('My cats are ' + myProfile.cats.join(', ') + '.');

Exercise Time!

Pair with the person(s) next to you to work through it together.

pair programming, kitty style


= Asynchronous JavaScript and "XML"

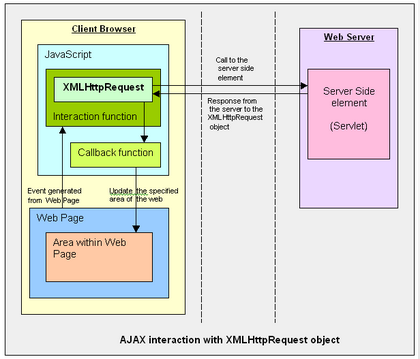

AJAX interaction with XMLHttpRequest object

AJAX in the Wild

airbnb as example

What else?

Web 1.0 & User Interaction

client-server interaction in web 1.0

Web 2.0 & User Interaction

client-server interaction in web 2.0

Web 1.0 vs.Web 2.0

client-server interaction in web 1.0 client-server interaction in web 2.0
Technologies Used: Technologies Used:
  • HTML
  • Server-Side Scripts
  • HTML
  • Server-Side Scripts
  • AJAX

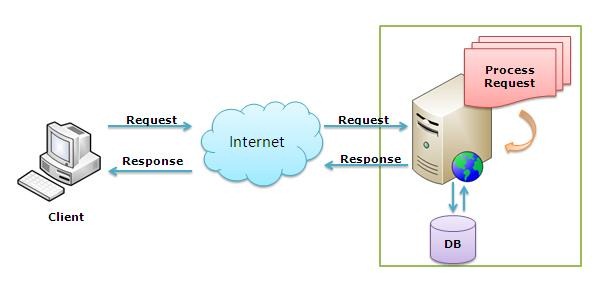

Requests & Responses

client-server-database interactions

  • Front-End: Hey, Back-End! Here's my credentials. Can I get some data? How about books on AJAX?
  • Back-End thinks about it, decides how to handle request...
  • Back-End looks in database, searches...
  • Back-End: 200 OK, here are some books on AJAX!
  • Front-End: Thanks! I'm going to make an online bookshelf with the data!

Anatomy of an XMLHttpRequest

            // instantiate a new request
var request = new XMLHttpRequest();

// add event listeners
request.addEventListener('load', function () {

  // transform a string into a usable object
});'get', '/path/to/api', true);
request.setRequestHeader('Content-type', 'application/json');

XMLHttpRequest: Diving Deeper

  • IE implemented XMLHR differently than the other browsers, so you must use the ActiveXObject if XMLHttpRequest is not available.
  • Different CRUD methods may be used
  • Sometimes you will need to send additional data
  • Errors and responses need to be handled

But we don't usually write all that code...

jQuery + AJAX

Use the jQuery $.ajax function.

            $.ajax({type: "GET",
  url: "filename.json",
  dataType: "json",
  success: function(data) { },
  error: function(xhr, status, e) { }

Using jQuery for everything

            $.ajax({type: "GET",
  url: "books.json",
  dataType: "json",
  success: function(books) {
    for (var i = 0; i < books.length; i++) {
      var book = books[i];
      var p = $('<p>');
      p.html(book.title + ' by ' +;
  error: function(xhr, status, e) {
    console.log(status, e);

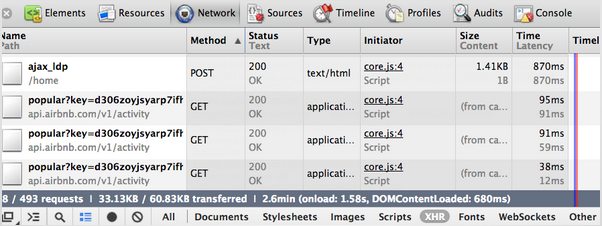

Debugging AJAX Requests

  • Click the NET/Network tab in Chrome Dev Tools or Firebug, select "XHR" filter to see all XMLHttpRequests made.
  • See what the request responded with by clicking its "Response" tab.

debugging AJAX using dev tools in the console

Exploring this will keep you busy for hours.

airbnb example

Exercise Time!

Pair with the person(s) next to you to work through it together.

pair programming, kitty style again

AJAX + Servers

            $.ajax({type: "GET",
  url: "/api/books",
  dataType: "json",
  data: {'sortBy': 'author'},
  success: processBooks
            $.ajax({type: "POST",
  url: "/api/book/new",
  dataType: "json",
  data: {'title': 'I, Robot', 'author': 'I. Asimov'}
  success: processBoooks

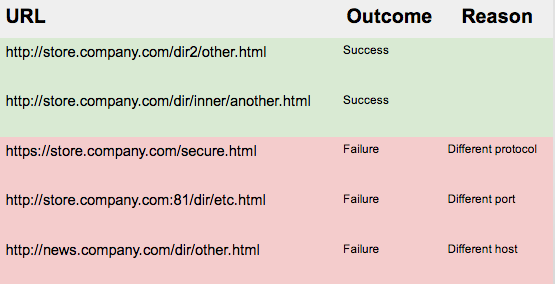

Cross Domain Policy


cross-domain policy

AJAX Gotchas

  • Cross domain requests have restrictions
  • Multiple AJAX requests don't return in order
  • Hard to transfer files
  • Can't transfer binary content
  • Browsers can over-cache/under-cache requests

UI No-Nos:

  • Not having linkable state
  • Not letting users know that something is loading
  • Breaking the back button
  • More here.

List of additional key concepts

  • What are the parts of an HTTP request?
  • What does CRUD stand for?
  • What is the same origin policy?
  • What are the 4 basic CRUD operations and methods?
  • What is the difference between JSONP and JSON?
