GDI San Francisco

Command-Line Git for Open Source

teaching-materials.org/git-oss

Welcome!

Girl Develop It is here to provide affordable and accessible programs to learn software through mentorship and hands-on instruction.

Some "rules"

  • We are here for you!
  • Every question is important
  • Help each other
  • Have fun!

Agenda

This class will be a combo of guided and independent practice
  • Command-line review
  • Setting up Git on your computer
  • Anatomy of a repository
  • Making a pull request, step-by-step
  • Syncing with remote repositories
  • Contribute to this repository!
  • Resources and Tips

Command-Line Review

Common commands:

  • cd: change directory (folder)
  • ls: list all the files
  • mkdir: make directory
  • rmdir: remove/delete directory
  • touch: create a file
  • rm: remove a file
  • pwd: find out the file path of current directory you are in, from the root

Working in Vim

Git’s default text editor is vim, and you may sometimes find yourself in there accidentally.
Here are some basic commands:

  • i - puts you in editor mode, so you can type the content of your file
  • Esc - puts you in “normal” or command mode, which you need to exit
  • :wq - from normal mode, saves and exits
  • :q! - from normal mode, exits without saving

What is Git?

(comic about Git, showing that many people don’t understand it and just memorize commands)

(source: xkcd)

Git Setup

Check for Git in your terminal:

git

Check your config:

git config --global --list

Git Setup

If needed, add your username and email:

git config --global user.name "YOUR_USERNAME"
git config --global user.email "github-acct-email@example.com"

You can check your config again:

git config --global --list

(more info)

What is GitHub?

GitHub is an online service where people can collaborate on projects using Git.

Many open source projects have their code on GitHub.

Before we get started, make sure you have a GitHub account and have verified your email.

Anatomy of a Repo

A repository (or “repo”) is folder for a project, with a single tracked history.

Let’s look at the repository for this website:

https://github.com/gdisf/teaching-materials

Let’s Start

Go to our practice repository:

https://github.com/gdisf/git-abcs

Let’s Start

Fork the main repo.

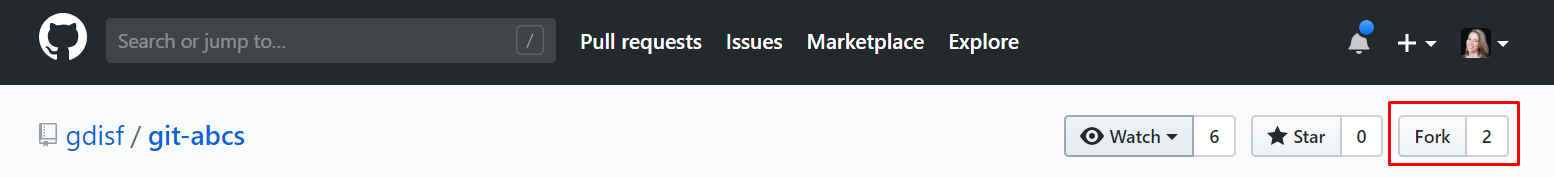

Fork button at end of repository header

Now you have your own version on GitHub.

Make a local version

On your fork, click the Download or clone button.

  • If the heading says, “Clone with SSH,” click Use HTTPS.
  • Copy the link

Make a local version

  • In the terminal, cd to where you want to store the repo
  • Clone the repo
git clone <paste-the-link-here>

Make a local version

  • ls to see your new repo
  • cd git-abcs to go into the repo
  • ls to see the files match the online repo
  • Check the log:
git log --oneline

Compare this to the online commit history.

Making changes: Create a branch

Check for branches in the local repo:

git branch

We’re on master, which we want to keep the same while we work.

Making changes: Create a branch

Checkout a new branch:

git checkout -b add-letter-x

(Replace x with the letter you picked at the beginning of class.)
Check your branches again:

git branch

Make a change on your branch

  • Open the folder in your favorite text editor.
  • Create a new file in the pages folder, called letter-x.md (replacing x with your letter).
  • Add a sentence to the file, about something that starts with your letter, like "M is for marmoset."
  • Save the file.

Track your change with Git

Check the status of your repo:

git status

Git sees you’ve made a change!
Add the changed file to staging:

git add pages/<filename>

Check the status again:

git status

Track your change with Git

Commit your staged change with a commit message:

git commit -m "Add a page for letter <your-letter>"

The change is now part of the log for this branch:

git log --oneline

Your branch is now 1 commit ahead of your online fork.

Push to your fork

Check for remote repositories:

git remote -v

When you cloned, Git remembered the link to the repo you cloned from, and called it origin

Push to your fork

Push your branch to origin to see it on your fork:

git push origin your-new-branch-name

Check your repo online - it now has your branch, with your commit.

Propose your changes

Make a pull request to propose your changes to the main repo.

  • In your fork or the main repo, click the Compare & pull request button.
  • Check the change list to be sure it contains the changes you want (and nothing else)

Propose your changes

  • Title the PR: “[WIP] Add letter ” (WIP = Work In Progress, because we’re not done with changes, but we want others to see our work so far.)
  • Add a description of the change, and what you still plan to do (add an image to the page).
  • Submit the pull request! You can see yours and others in the main repo.

Make more local changes

Keep working on the same branch as before.

  • Find a non-copyrighted image of something that starts with your letter, and add it in the images folder.
  • Edit your letter-x.md file to add the image to the page, along with a heading, using the pages/letter-b.md file as a guide.

(We’re using Markdown, because GitHub renders it as styled text in the browser. Check out their Markdown guide for more tips.)

Make more local changes

Check your status to see what files have changed:

git status

Check the diff to see line-level changes (inside a file):

git diff

Add all changes in the current folder to staging:

git add .

Make more local changes

Check that your changes are staged:

git status

Commit the staged changes:

git commit -m "Add image to page <your-letter>"

Check the log:

git log --oneline

Add changes to your PR

Pushing commits to your branch on origin will add the commits to your PR.

git push origin same-branch-as-before
  • Check the PR to see your commit was added.
  • Add a comment to say your changes are done and ready for review.
  • Edit the PR title to remove the “[WIP]”.

Merging your PR

A project maintainer will review your pull request. If everything looks good, they’ll merge it.

When a PR is merged:

  • All commits in the PR are added to the master branch on the main repo.
  • This will not update your fork, or your local repo.

Sync your master branches

First, you need to get the changes from the main repo into your local version. Switch to your master branch, because that’s the one we want to keep in sync:

git checkout master

Check your remote repos:

git remote -v

You’re still connected only to the fork (origin).

Sync your master branches

Add the main repo, calling it upstream:

git remote add upstream https://github.com/gdisf/git-abcs.git

Check your remotes again:

git remote -v

Your local repo is now connected to both remotes.

Sync your master branches

Check your branches, including remote branches:

git branch -r

Fetch the branches and history from upstream:

git fetch upstream

Check that you can see more branches now:

git branch -r

Sync your master branches

Compare your master branch history with the upstream master:

git log --oneline master..upstream/master

This lists commits on upstream that your master doesn’t have. Merge those to your current branch (master):

git merge upstream/master

Sync your master branches

Check your log to see the new commits from upstream:

git log --oneline

Check to see there are no commits you’re missing:

git log --oneline master..upstream/master

Sync your master branches

Check your status:

git status

Your local master is now ahead of your origin (fork). Push those added commits:

git push origin master

Everything matches now!

Make a new change

Let’s make a new change, on a new branch, based on the updated master. First, make sure you’re still on master:

git branch

Make a new change

Checkout a new branch based on the current branch (master):

git checkout -b link-letter-x

(Replace x with your same letter as before.) Double-check you’re on your new branch:

git branch

Make a new change

  • Return to your text editor, and see all of the new pages and images!
  • Open the file for the letter before your letter.
  • Add a “next page” link to the bottom of the file, linking to your page. (You can use the last line of pages/letter-a.md as an example.)
  • Save the file.

Commit your new change

Follow the steps from before to:

  • Check your status.
  • Add your changes.
  • Commit your change with a message.
  • Check your log.
  • Push the new branch to your origin.

Make a new PR

Follow the steps from before to:

  • Start a new PR.
  • Confirm your changes.
  • Write a descriptive title and comment. (no need for WIP this time)

We've Got Issues

GitHub issues are where collaborators track bugs, propose features, and discuss changes. They are for conversation, and do not actually change code.

Anyone can open or comment on an issue.

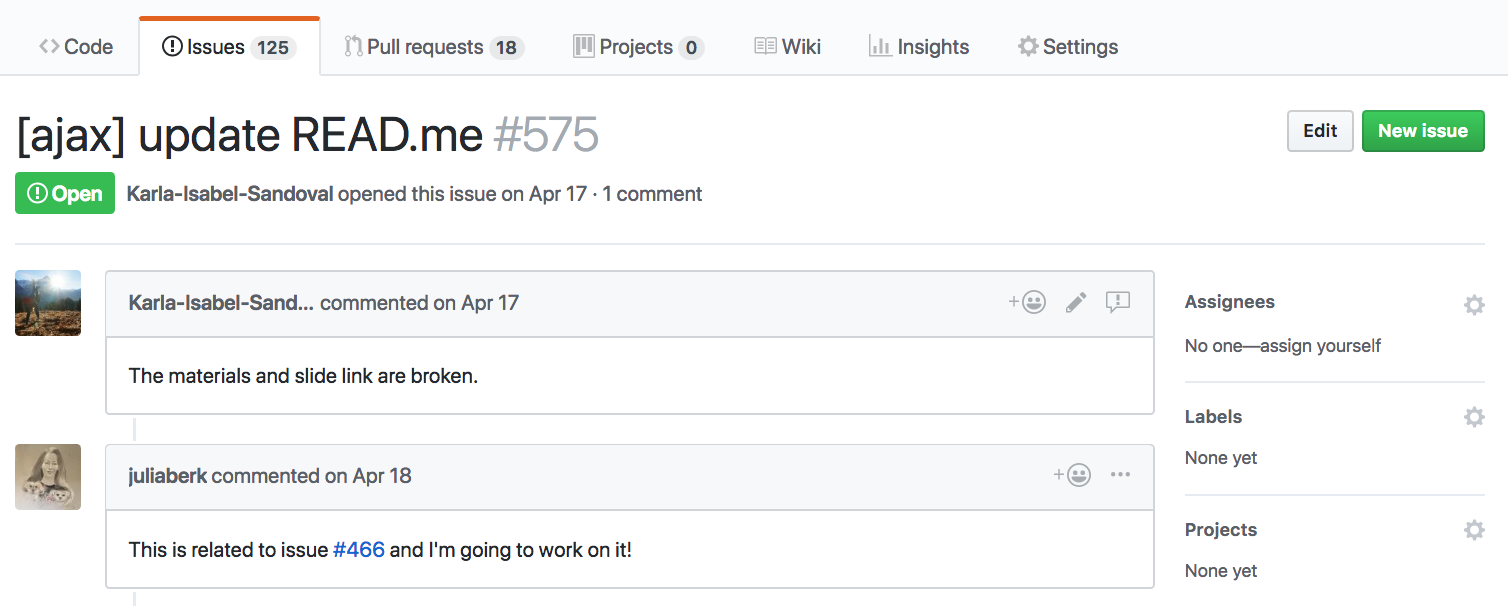

Claiming issues

If you find an issue you'd like to work on, avoid duplicating work by commenting to say you'll volunteer.

Feel free to ask questions if you need clarification before starting!

Fix an issue

Use what you’ve learned to claim an issue and make a PR to fix it.

  • You can add the issue number to the branch name, like issue-8-add-m
  • If you have time, tackle a new issues.
  • If there are no more issues, create a new one and claim it.

Contribute to a real repo!

Use what you’ve learned to fix an issue on the
teaching-materials repo.

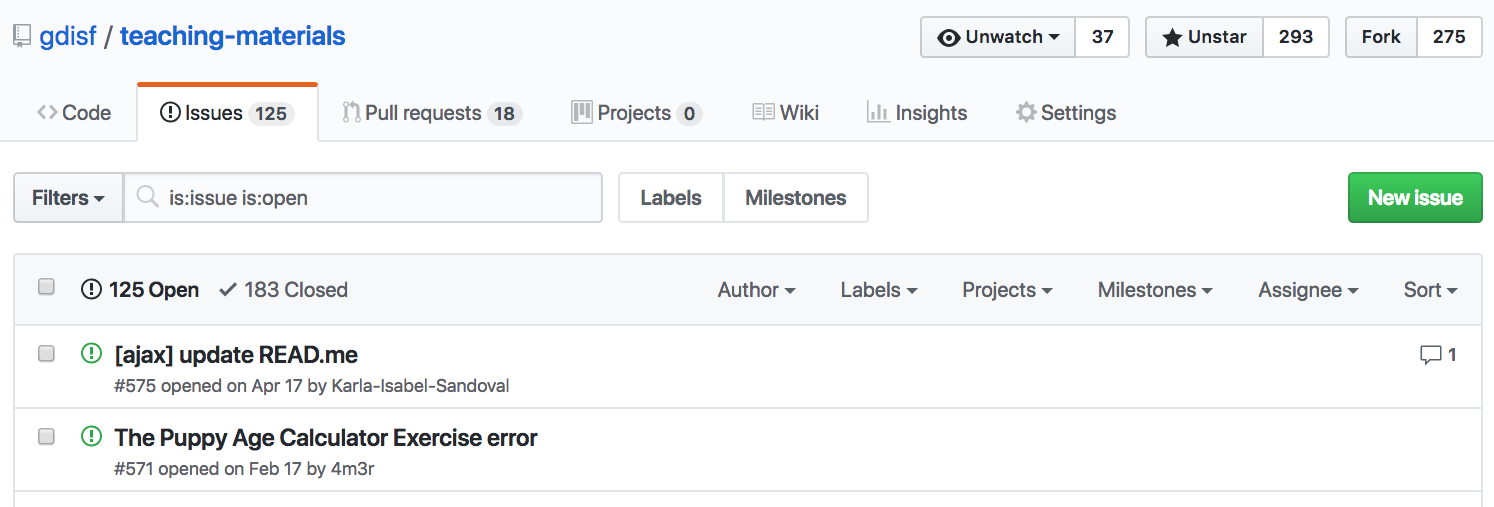

  • In the issue list, click the newbies-only label for friendly, bite-sized issues.
  • Check the CONTRIBUTING.md for contribution guidelines.
  • Don’t forget to make a fork before cloning!

Finding more projects

Some tools for finding newbie-friendly projects and issues:

  • Search for issues with common newcomer labels at issuehub.io and up-for-grabs.net
  • Check out a repo's community profile for indicators of a healthy community
  • Watch the repos of tools you use, or new ones as you're learning them. Read issues and pull requests as they come in to get familiar with the project and see where you can contribute.

Tips and Resources
